Cal-Royal's Grand Series Levers

  • DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.  2” thickness available upon request.

  • BACKSET 2 ¾” or 2 ⅜” backset.

  • LATCH FACEPLATE 2 ¼” x 1 ⅛” or 2 ¼” x 1”, with plastic filler to convert 1” faceplate to 1 ⅛” wide door preparations.

  • STRIKES T-Strike standard. Optional ANSI and Full Lip Strike available.

  • ANSI STANDARDS Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements.

  • LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.

  • STRIKES ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.

  • EXPOSED TRIM Stainless Steel or Zinc casting, plated to match trim finish.

  • HANDING GERARD and VALENCIA lever designs are handed, not field reversible.
    Must specify R (Right) or L (Left) when ordering.

  • KICK-OFF FEATURE ON PRIVACY FUNCTION Privacy function automatically unlocks if door is locked prior to closing.
    Inside lever always retracts latch. Outside lever is locked by locking pin
    from inside and unlocked by turning inside lever, closing door, or using
    emergency pin on outside lever.

Cal-Royal's Automatic Door Bottom Series

  • Automatic Door Bottoms are made from Extruded Aluminum combined with  Neoprene or Vinyl seals.

  • It provides an efficient seal that blocks out air, smoke, sound, and fire.

  • Available in Surface Mounted, Semi-Mortised and Mortised Applications.

  • It can be installed on either wood or hollow metal doors; or as specified on each model.

  • Non-Handed, Reversible for Left or Right Hand Installation.

  • Low closing force; Slotted holes for adjustment.

  • The maximum cut should not be closer to 1 ½” to the set screw.

automatic door bottom.png

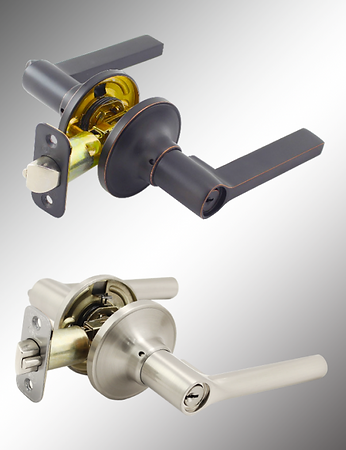

Cal-Royal's Heritage Series

  • ANSI Standard A156.2 Grade 3

  • Keyed Entry with Lever / Lever for Exterior & interior

  • Kwikset Keyway; Re-keyable for Master and Construction Keying

  • Optional Weiser and Schlage “C” Keyway Available

  • Brass and Stainless Steel Trims; Levers are Plated

  • 2 ⅜” or 2 ¾” Adjustable Backset, Size 1” x 2 ¼” Round Corner Standard; Square Corner Option and Drive-In Latch bolt also Available on Special Factory Order.

  • Optional 3-Hour Fire Rated UL Listed Latch

  • Reversible for Right and Left Handed Doors

  • Round Corner Full Lip Strike is Standard

  • Fits 1 ⅜” to 1 ¾” Wood or Metal Doors

Burns Barn Pull Door Sets
  • Can be mounted as an arm pull or foot pull

  • ADA Compliant

  • Stainless steel available in the following finishes: flat black, dark bronze, and anti microbial powder coats

Learn More
Burns Hands Free Pulls
  • Back to back sets

  • Uses a thru-bolt mounting system

  • Available in bright & satin stainless steel and flat black & dark bronze powder coats

Learn More
Option 1 (1).jpg

Organized Living Home Office

  • Design your own dream office space

  • Adaptable to any room in your home

  • Multi-family and single family solutions

Office Design Tool
